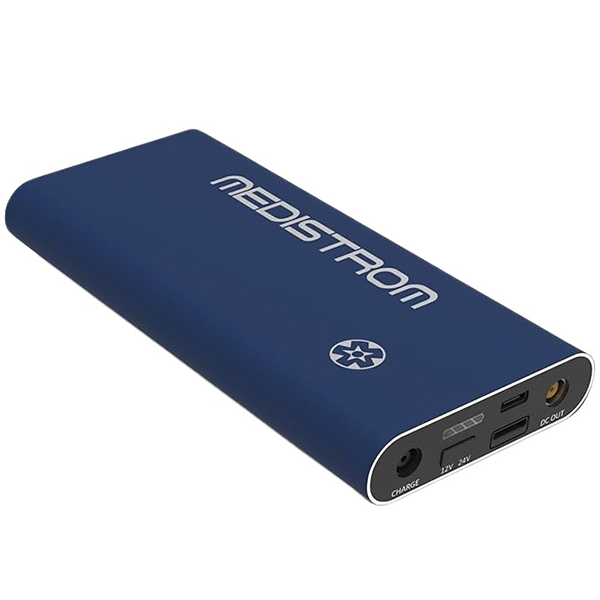

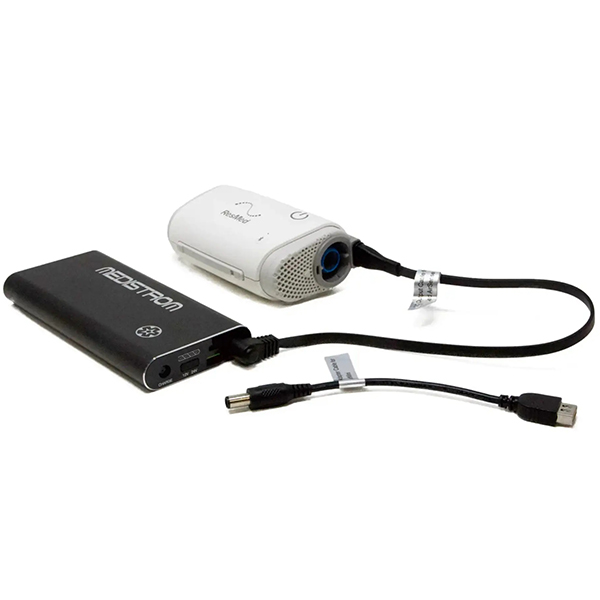

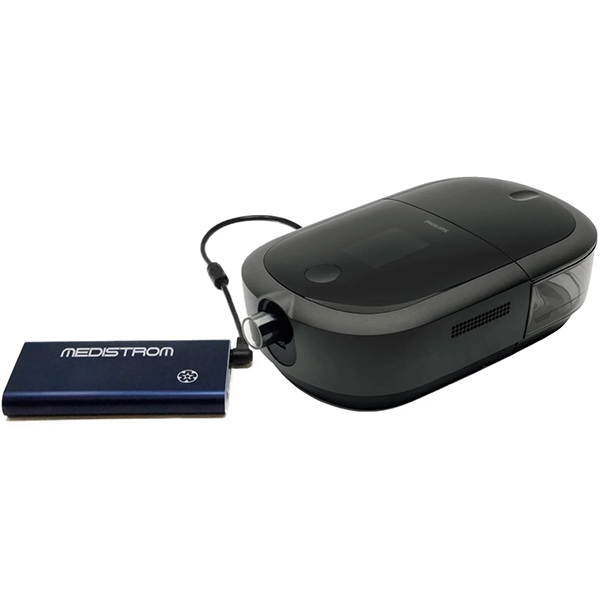

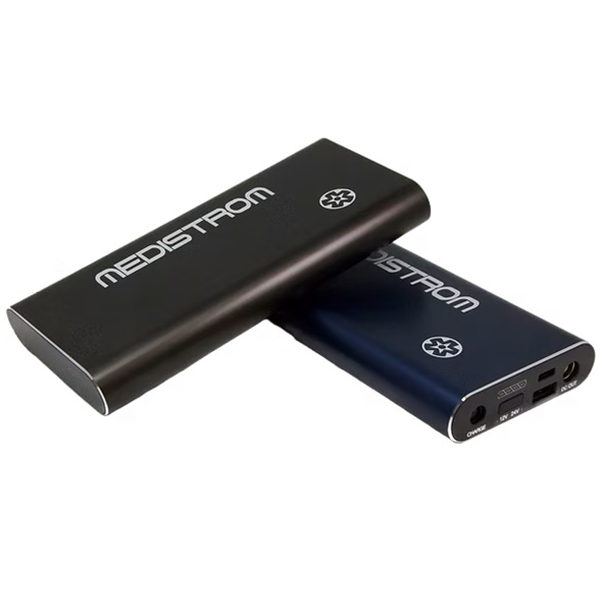

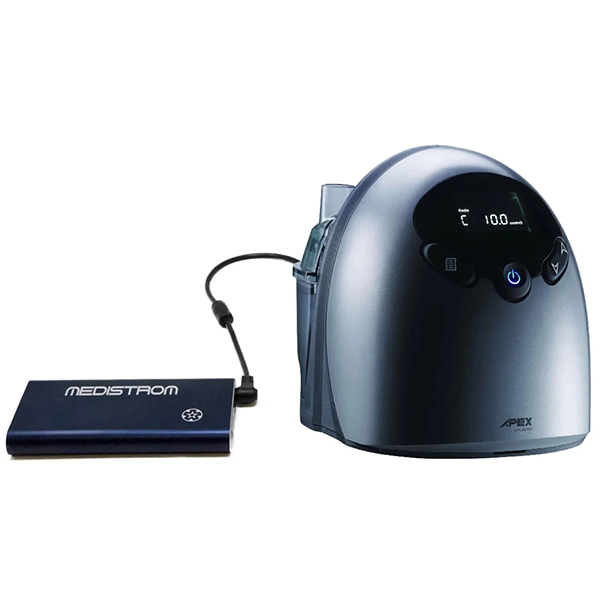

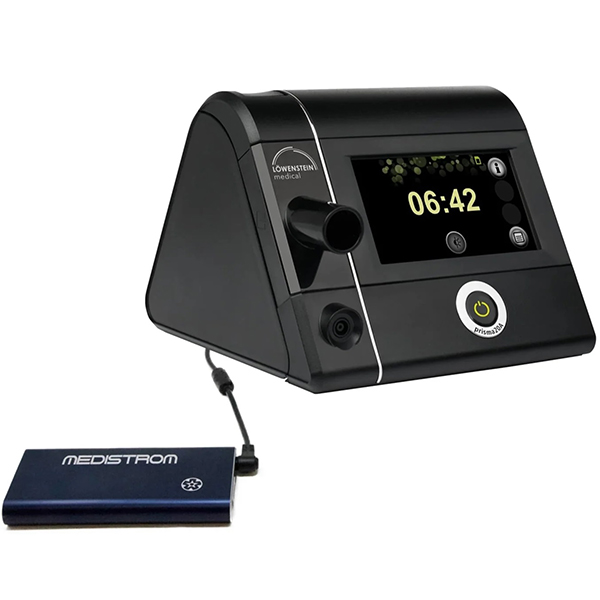

This Pilot Flex is the new addition to the Medistrom CPAP Batteries, and unlike the Pilot-12, Pilot-24 and Pilot-19 Lite series which are specific to different CPAP machines, this new Pilot Flex is one battery (in a choice of two colours - Charcoal Black or Navy Blue) and is designed to work with the most CPAP machines. The only essential extra needed will be the compatible cable kit for the CPAP machine (unless you have a Resmed AirMini Travel CPAP Machine as the cable kit is included with the Pilot Flex).
The Pilot Flex is cast out of aluminum and never uses plastic. The sleek aluminum body serves as a superior heat dissipation mechanism to help prevent overheating and damage to the internal components during operation, unlike batteries using plastic shells.
Utilizing aluminum casing greatly extends the total lifespan and durability of the Pilot Flex! When batteries power devices, heat is generated internally which causes the outer casing to expand and warp. Because aluminum is an incredible malleable metal, the outer shell of the Pilot Flex can easily return back to its original structure without becoming cracked, dented, or warped during extended usage.

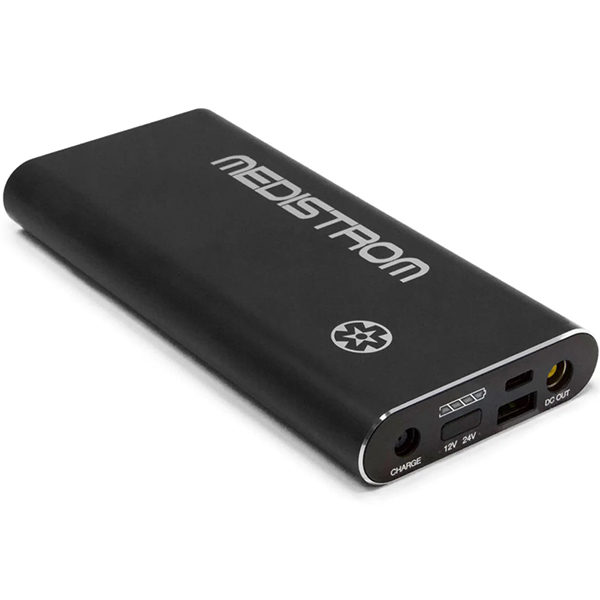

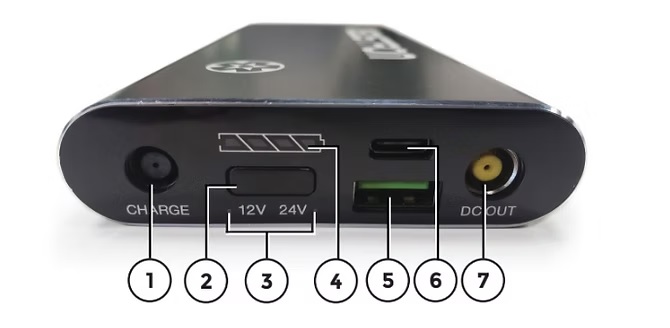

1.Charge Port: Plug the compatible AC adapter into this port (use the short charging adapter if required). Ensure that the AC adapter is plugged into the main power outlet. Once the battery is charging the 4 green Charge Level Indicator Lights will turn on.
2.Multi-Function Button: Pressing the button will turn the battery on and also show the battery's charge level. If the battery is in stand-by mode then press the button and the battery will turn back on
3.Voltage "ON" Indicator Light: A light will shine beside the 12V or 24V indicating the current output voltage of the battery
4.Green Charge Level Indicator Lights: When the battery is being charged, the lights will blink, and then shine a solid green showing the level of charge going from 1 to 4 lights.
5.USB-A Port: Can be used to charge handheld devices (just ensure that the voltage is compatible with the device you wish to charge). Once the device is connected you can press the Multi-Function Button to turn the battery on.
6.USB-C Port (Input and Output Capabilities): This port can be used to charge handheld devices in the output capacity and will supply a maximum of 45W. The Pilot Flex can also be charged through this port with a maximum input of 45W.
7.DC Out Port: This port is used to connect the battery to a compatible CPAP device.
